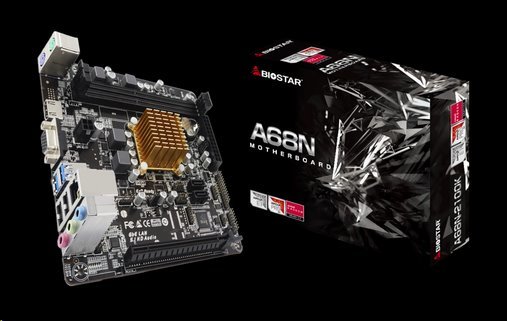

Mainboard,AMD E16010, Socket BGA FT3B , MiniITX -

Chipset AMD Beema CPU AMD E1-6010 Processor (Dual core 1.35GHz) MEMORY Supports Single Channel DDR3 & DDR3L 800/1066/1333 (1.25V) 2 x DDR3 & DDR3L DIMM Memory Slots Max. Supports up to 16GB Memory Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module... pročitati sve

Chipset	AMD Beema
CPU	AMD E1-6010 Processor (Dual core 1.35GHz)
MEMORY	Supports Single Channel DDR3 & DDR3L 800/1066/1333 (1.25V) 2 x DDR3 & DDR3L DIMM Memory Slots Max. Supports up to 16GB Memory Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module ?Please refer to www.biostar.com.tw for Memory support list
INTEGRATED VIDEO	AMD Radeon? R2 Graphics Supports HDCP
STORAGE	2 x SATA III Connectors (6Gb/s) : Supports AHCI
LAN	Realtek RTL8111H - 10/100/1000Mb/s Controller
AUDIO CODEC	ALC887 / ALC897 7.1 Channels, High Definition Audio
USB	2 x USB 3.2 Gen1 Port (2 on rear I/Os) 6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT	1 x PCI-E 2.0 x16 Slot (x4)
REAR I/O	1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.2 Gen1 Ports 2 x USB 2.0 Port 1 x HDMI Port 1 x VGA Port 1 x LAN Port 3 x Audio Jacks
INTERNAL I/O	2 x USB 2.0 Header (each header support 2 USB 2.0 ports) 2 x SATA III Connectors (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x TPM Header 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header 1 x Printer Port Header
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control
DIMENSION	Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )
OS SUPPORT	Supports Windows 7 /8.1 /10 ?Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard Smart Speed LAN
ACCESSORIES	2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide
FEATURES	Supports 100% Solid capacitor BIO-FLASHER
Caution!! The specification and pictures are subject to change without notice!
